Corountine

2025-06-25

Word count: 5.7k | Reading time≈ 30 min

定义

Coroutines are computer program components that allow execution to be suspended and resumed, generalizing subroutines for cooperative multitasking.
Coroutines are well-suited for implementing familiar program components such as cooperative tasks, exceptions, event loops, iterators, infinite lists and pipes.

They have been described as "functions whose execution you can pause".

Melvin Conway coined the term coroutine in 1958 when he applied it to the construction of an assembly program. The first published explanation of the coroutine appeared later, in 1963.

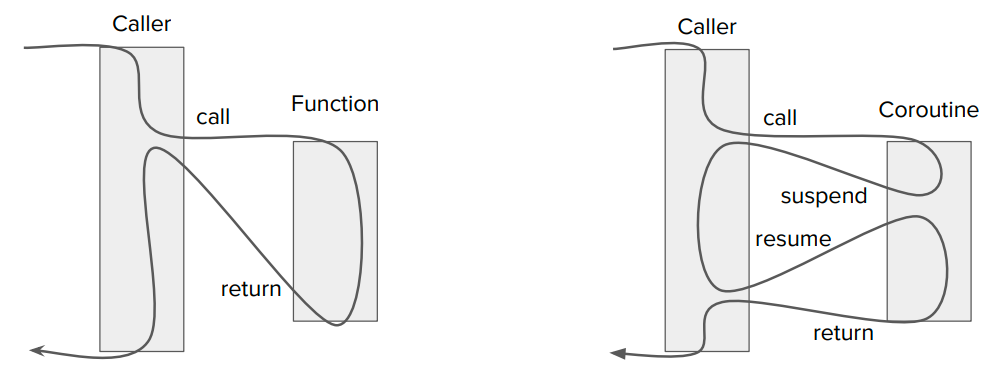

左边是函数调用的流程，右边是协程调用流
alt text

根据上图，可以看出来协程的特点是可中断可恢复。
我们可以把它当成一个特殊的函数。

示例

我们来看一个简单的协程（无栈协程）代码示例：

#include <iostream>
#include <coroutine>

struct Task {
    class promise_type{
    public:
        Task get_return_object() {
            return Task{ std::coroutine_handle<promise_type>::from_promise(*this)};
        }
        std::suspend_never initial_suspend() { return {}; }
        std::suspend_never final_suspend() noexcept { return {}; }
        void unhandled_exception() {}
        //void return_void() {}
    };
public:
    Task(std::coroutine_handle<promise_type> handle) : coroutine_handle_(handle) {}

    void resume() {
        coroutine_handle_.resume();
    }

private:
    std::coroutine_handle<promise_type> coroutine_handle_;
};

Task hello_coroutine(int n) {
    std::cout << "hello ";
    co_await std::suspend_always{};
    std::cout << " coroutine " << std::hex << n << '\n';
}

int main() {

    int n{0x3f};
    auto task = hello_coroutine(n);
    std::cout << "---------";
    task.resume();
    return 0;
}

程序的运行结果是：

1	hello --------- coroutine 3f

我们发现，打印完hello之后，程序没有继续打印后面的字符串，而是回到了main函数（协程调用方）中，在执行task.resume()之后又回到协程函数中继续执行。
我们发现hello_coroutine复合协程的定义，可中断可恢复。

那么：

1.如何跳转回调用方的？
3.Task中的promise_type是什么？为什么要定义那些函数？
4.co_await 关键字是什么？
…

后续无栈协程中将会解决上述问题。
协程在实现上主要分成两种：有栈协程和无栈协程。
所谓的有栈协程就是指运行环境的恢复是通过类似函数调用栈的思想实现的，而无栈协程是通过编译器对代码进行扩展实现的，思想和状态机类似。

有栈协程

我们知道，一般的函数调用是依赖栈的，在调用函数时会创建一个栈帧，在函数执行完成后回收栈帧。
而有栈协程就是在协程函数执行时申请一块内存，用户自行保存上下文/切换上下文就可以实现协程的切换。

我们简单回顾一下调用一个函数时，底层做了什么事情。

int func() {
    int x = 100;
    return x;
}

int main()
{
    func();
    return 0;
}

x86-64 gcc 13.2 (-m32) 得到的汇编指令如下：

func():
        pushl   %ebp
        movl    %esp, %ebp
        subl    $16, %esp
        movl    $100, -4(%ebp)
        movl    -4(%ebp), %eax
        leave     //movl %ebp %esp   +   popl %ebp
        ret       //popl %eip  将之前保存的 caller 的 return address 出栈并赋值给 eip
main:
        pushl   %ebp
        movl    %esp, %ebp
        call    func()    //pushl %eip  + jmp func
        movl    $0, %eax
        popl    %ebp
        ret

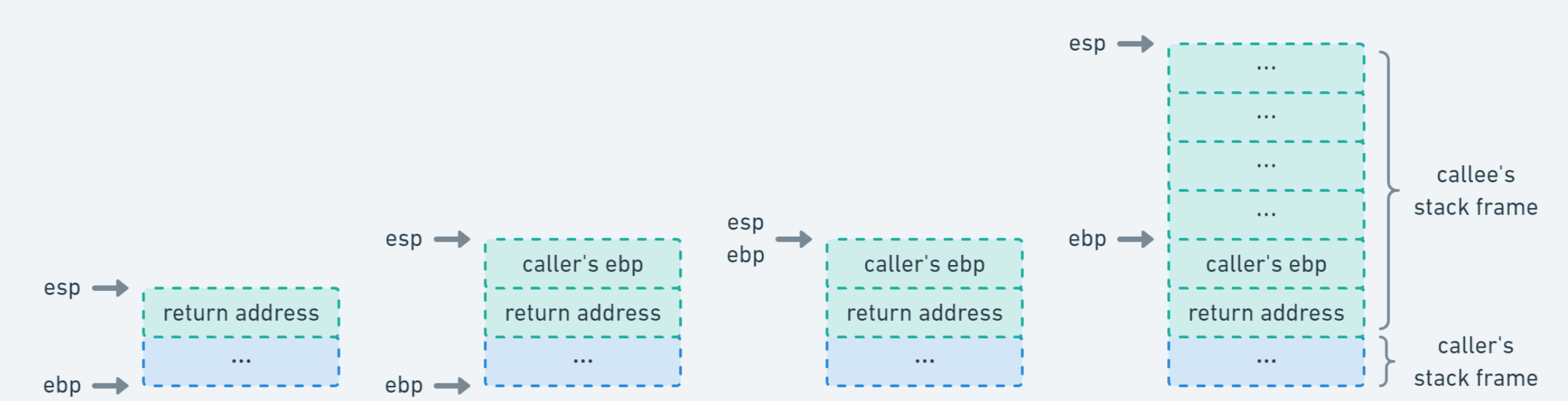

call func-1

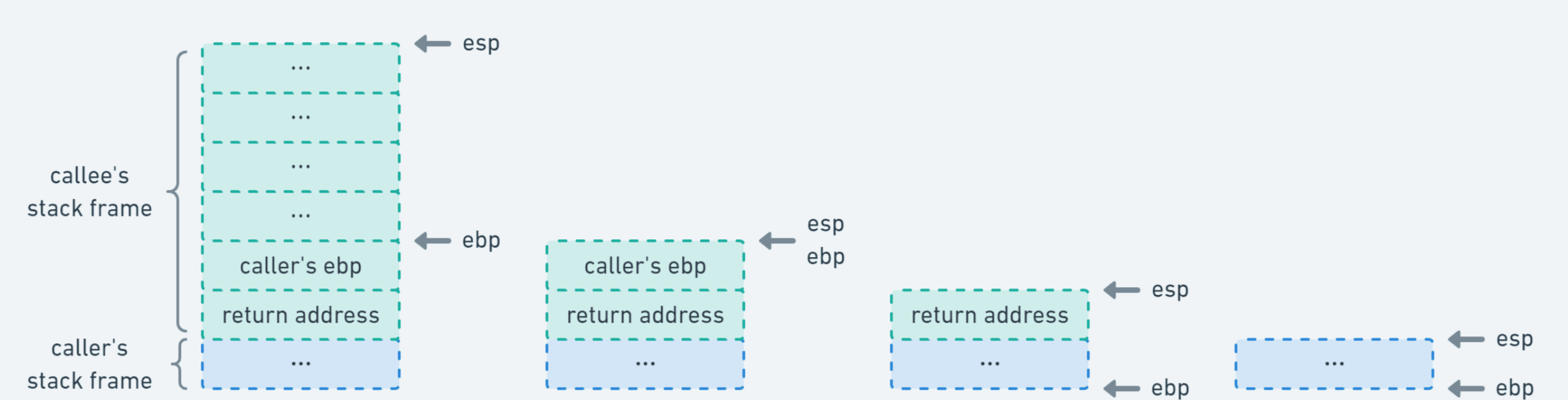

call func-2

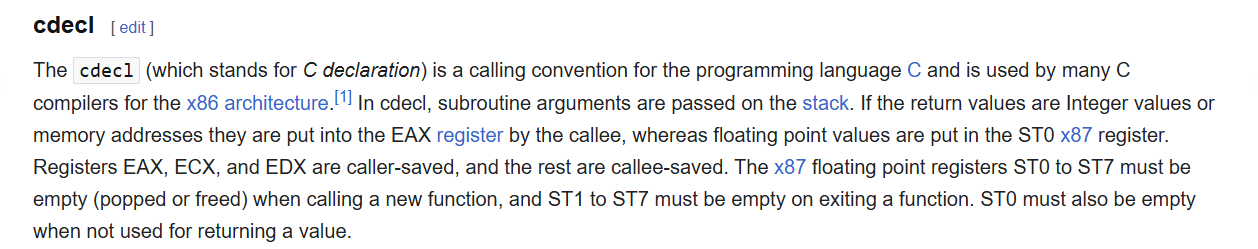

根据cdecl调用约定：https://en.wikipedia.org/wiki/X86_calling_conventions#Caller-saved_(volatile)_registers
cdecl
以 x86 平台为例:

%ebx-通用寄存器（callee-saved）
%edi-通用寄存器（callee-saved）
%esi-通用寄存器（callee-saved）
%ebp-栈帧基地址指针
%esp-栈顶指针
ret address- 返回地址（即“下一条要执行的指令”）

这些寄存器的组合能让协程在切回来时：

找到栈位置（%esp）
恢复原函数返回的位置（ret address）
恢复原来的局部变量访问基址（%ebp）
恢复部分通用寄存器状态（如 %ebx, %esi, %edi）

其他寄存器如 %eax, %ecx, %edx 被认为是 caller-saved，不需要 callee 保存，调用者自己负责备份。
我们可以通过申请一段内存存放函数运行时的上下文，在恢复的时候将内存中的上下文复制到寄存器中，就可以模拟协程，

stackful_co.c

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

const int CO_SIZE = 1024;

static char** s_main_co = NULL;
static char** s_func_co = NULL;

extern void swap_context(char **cur_co, char** next_co);

char** init_context(char* func) {
  char** ctx = (char**) malloc(sizeof(char*) * CO_SIZE);
  memset(ctx, 0, sizeof(char*) * CO_SIZE);  //用来存放上下文

  *(ctx + CO_SIZE - 1) = (char*)func;   //这里为了方便，第一次调用时，将函数入口地址作为return address
  *(ctx + CO_SIZE - 6) = (char*)(ctx + CO_SIZE - 7);  //预留6个寄存器，其余作为栈帧
  return ctx + CO_SIZE;   //栈地址增长方向与堆地址增长方向不同
}

void func() {
  char* str = "hi, func.";
  printf("%s, before yield\n", __FUNCTION__);
  swap_context(s_func_co, s_main_co);
  printf("%s, func resume, %s\n",__FUNCTION__,  str);
  swap_context(s_func_co, s_main_co);
}

int main()
{
  s_main_co = init_context((char*)main);
  s_func_co = init_context((char*)func);

  char* str = "hi, main.";
  printf("%s, before call func\n", __FUNCTION__);
  swap_context(s_main_co, s_func_co);
  printf( "%s, main resume, %s\n", __FUNCTION__,  str);
  swap_context(s_main_co, s_func_co);


  free(s_main_co - CO_SIZE);
  free(s_func_co - CO_SIZE);
  return 0;
}

swap_context.s

  .globl swap_context
  .type swap_context, @function

swap_context:
    //不会建立栈帧
    movl 4(%esp), %eax    //获取第一个参数cur_co, 存放在eax中
    movl %ebx, -8(%eax)   //将各个寄存器中的值存储到cur_co中
    movl %edi, -12(%eax)
    movl %esi, -16(%eax)
    movl %ebp, -20(%eax)
    movl %esp, -24(%eax)

    //  %esp  存储的是当前调用栈的顶部所在的地址，
    // (%esp) 是顶部地址所指向的内存区域存储的值，即返回cur_co的返回地址
    movl (%esp), %ecx
    movl %ecx, -4(%eax)

    // 获取 swap_ctx 的第二个参数 char **next_co
    movl 8(%esp), %eax

    // 依次将 next 存储的值写入各个寄存器，
    movl  -8(%eax), %ebx
    movl -12(%eax), %edi
    movl -16(%eax), %esi
    movl -20(%eax), %ebp
    movl -24(%eax), %esp

    movl -4(%eax), %ecx  //前面约定了这个地址存放的是返回地址，所以我们将它赋值给esp指向的内容
    movl %ecx, (%esp)

    ret

1	gcc -m32 stackful_co.c swap_context.s -o test

有栈协程缺点比较明显：

如果申请的内存太大，可能会浪费内存，同时也限制了协程的数量。
如果申请的内存太小，可能会溢出的风险。
同时高频的有栈协程切换会破环CPU的栈缓冲区预测的优化，性能上限不如无栈协程。

不过Golang采用的就是有栈协程，在语言层面就原生支持协程-goroutine，他的栈空间可以根据需要扩容或缩减，所有协程统一在运行时由调度器管理，G-M-P模型。

无栈协程

相较于有栈协程这种朴素的实现方式，c++20的协程是无栈协程，他采用的是状态机的思想，通过编译器生成代码实现协程上下文之间的切换。

在c++20中，如果函数中出现了这co_await， co_yield，co_return这三个关键字，该函数就被认为是协程。他们的含义如下：

co_await
co_await的操作对象必须是一个awaitable object，它需要定义如下几个函数来保证协程的正常执行：

await_ready() 如果返回true，代表协程已经准备就绪不需要挂起，否则挂起协程。
await_suspend() 该函数可以定义协程挂起时的行为，同时，该函数参数为协程句柄，这意味着我们可以在这个函数中那个恢复协程。
await_resume() 当协程恢复执行或者协程不需要挂起的时候，就会执行这个函数。

c++预定义了两个awaitable object，分别是suspend_always和suspend_never，他们的区别就是await_ready的返回值不同，
前者表示总是挂起，后者表示总是不挂起

介绍另外两个之前，还需要注明下协程的返回值，举个例子：

struct Task {
        class promise_type {
        public:
                Task get_return_object() { return {};}    //协程开始执行之前，会执行此函数，构造一个返回值
                std::suspend_never initial_suspend() { return {};}   //协程开始执行后，会先执行此函数，这里可以控制协程是否挂起
                std::suspend_never final_suspend() noexcept { return {};}  //协程结束执行时，会执行此函数，可以控制协程是否挂起，标准要求该函数必须是noexcept
                void unhandled_exception() {}   //处理协程中的异常行为
                void return_void() {}
                std::suspend_always yield_value(T xxx) { /*...*/ return {}}   //co_yield 要求实现此方法，并将返回值传递给co_await


        };
};

返回值的类型中需要定义一个promise_type，前面提到这些函数会在什么时候执行，所以我们可以通过自定义这些函数的行为来完全控制协程的行为，

co_yield
如果协程需要多次返回数据，就需要用到co_yield
它要求promise_type 实现yield_value() 方法，该方法要求返回值必须是awaitable object，执行后将该对象传递给co_await

co_return
它要求promise_type 实现 return_value() 方法，如果co_return不带任何参数，将会调用return_void()方法。
该方法执行完之后将会执行final_suspend, 最后销毁协程。

我们再通过一个例子来学习下协程的创建流程：
协程创建

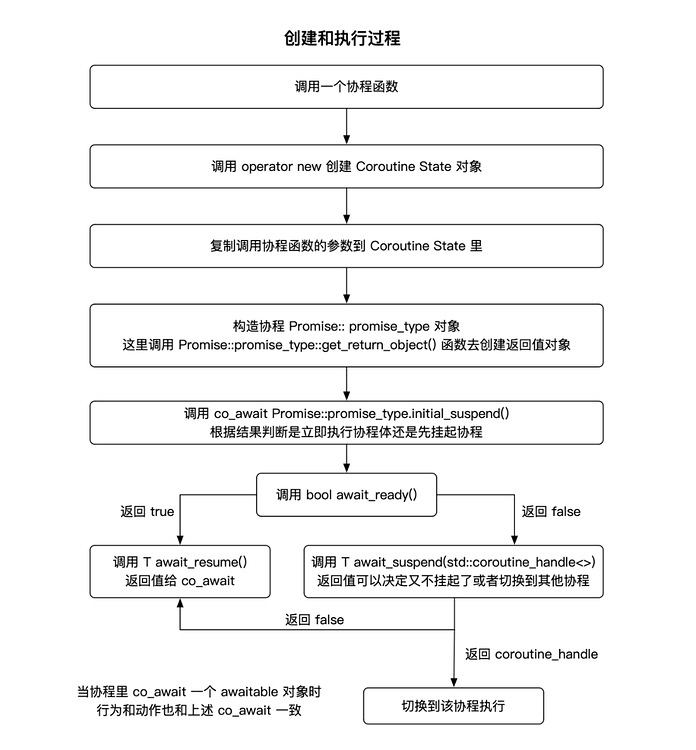

创建协程的流程：

创建一个协程帧-coroutine frame
在协程帧里面构建promise对象
把协程的参数拷贝到协程帧里
调用promise.get_return_object() 返回一个对象

promise_type中的定制点：

initial_suspend: 在协程创建后调用，可以控制是否挂起
final_suspend: 在协程执行结束后调用，这里也可以控制是否挂起
return_value: 保存协程返回值
unhandled_exception: 处理异常

#include <coroutine>
#include <iostream>
#include <thread>

namespace Coroutine {
  struct task {
    struct promise_type {
      promise_type() {
        std::cout << "1.create promie object\n";
      }
      task get_return_object() {
        std::cout << "2.create coroutine return object, and the coroutine is created now\n";
        return {std::coroutine_handle<task::promise_type>::from_promise(*this)};
      }
      std::suspend_never initial_suspend() {
        std::cout << "3.do you want to susupend the current coroutine?\n";
        std::cout << "4.don't suspend because return std::suspend_never, so continue to execute coroutine body\n";
        return {};
      }
      std::suspend_never final_suspend() noexcept {
        std::cout << "13.coroutine body finished, do you want to susupend the current coroutine?\n";
        std::cout << "14.don't suspend because return std::suspend_never, and the continue will be automatically destroyed, bye\n";
        return {};
      }
      void return_void() {
        std::cout << "12.coroutine don't return value, so return_void is called\n";
      }
      void unhandled_exception() {}
    };

    std::coroutine_handle<task::promise_type> handle_;
  };

  struct awaiter {
    bool await_ready() {
      std::cout << "6.do you want to suspend current coroutine?\n";
      std::cout << "7.yes, suspend becase awaiter.await_ready() return false\n";
      return false;
    }
    void await_suspend(
      std::coroutine_handle<task::promise_type> handle) {
      std::cout << "8.execute awaiter.await_suspend()\n";
      std::thread([handle]() mutable { handle(); }).detach();
      std::cout << "9.a new thread lauched, and will return back to caller\n";
    }
    void await_resume() {}
  };

  task test() {
    std::cout << "5.begin to execute coroutine body, the thread id=" << std::this_thread::get_id() << "\n";//#1
    co_await awaiter{};
    std::cout << "11.coroutine resumed, continue execcute coroutine body now, the thread id=" << std::this_thread::get_id() << "\n";//#3
  }
}// namespace Coroutine

int main() {
  Coroutine::test();
  std::cout << "10.come back to caller becuase of co_await awaiter\n";
  std::this_thread::sleep_for(std::chrono::seconds(1));

  return 0;
}

这是示例代码在x86上gcc 13.2生成的汇编代码，基于此有几点我们可以关注：

1.协程的状态以及上下文是保存在堆上的

2.协程是一个状态机，编译器为协程的中断点/恢复点设置了一个状态，实现了跳转

Task::promise_type::get_return_object():
        push    ebp
        mov     ebp, esp
        sub     esp, 24
        lea     eax, [ebp-12]
        sub     esp, 8
        push    DWORD PTR [ebp+12]
        push    eax
        call    std::__n4861::coroutine_handle<Task::promise_type>::from_promise(Task::promise_type&)
        add     esp, 12
        sub     esp, 8
        push    DWORD PTR [ebp-12]
        push    DWORD PTR [ebp+8]
        call    Task::Task(std::__n4861::coroutine_handle<Task::promise_type>) [complete object constructor]
        add     esp, 16
        mov     eax, DWORD PTR [ebp+8]
        leave
        ret     4
Task::promise_type::initial_suspend():
        push    ebp
        mov     ebp, esp
        nop
        mov     eax, DWORD PTR [ebp+8]
        pop     ebp
        ret     4
Task::promise_type::final_suspend():
        push    ebp
        mov     ebp, esp
        nop
        mov     eax, DWORD PTR [ebp+8]
        pop     ebp
        ret     4
Task::promise_type::unhandled_exception():
        push    ebp
        mov     ebp, esp
        nop
        pop     ebp
        ret
Task::Task(std::__n4861::coroutine_handle<Task::promise_type>) [base object constructor]:
        push    ebp
        mov     ebp, esp
        mov     eax, DWORD PTR [ebp+8]
        mov     edx, DWORD PTR [ebp+12]
        mov     DWORD PTR [eax], edx
        nop
        pop     ebp
        ret
Task::resume():
        push    ebp
        mov     ebp, esp
        sub     esp, 8
        mov     eax, DWORD PTR [ebp+8]
        sub     esp, 12
        push    eax
        call    std::__n4861::coroutine_handle<Task::promise_type>::resume() const
        add     esp, 16
        nop
        leave
        ret
hello_coroutine(int):
        push    ebp
        mov     ebp, esp
        sub     esp, 24
        mov     BYTE PTR [ebp-9], 0
        mov     BYTE PTR [ebp-10], 0
        mov     eax, 28
        sub     esp, 12
        push    eax
        call    operator new(unsigned int)
        add     esp, 16
        mov     DWORD PTR [ebp-16], eax
        mov     eax, DWORD PTR [ebp-16]
        mov     BYTE PTR [eax+22], 1
        mov     eax, DWORD PTR [ebp-16]
        mov     DWORD PTR [eax], OFFSET FLAT:hello_coroutine(_Z15hello_coroutinei.Frame*) (.actor)
        mov     eax, DWORD PTR [ebp-16]
        mov     DWORD PTR [eax+4], OFFSET FLAT:hello_coroutine(_Z15hello_coroutinei.Frame*) (.destroy)
        mov     edx, DWORD PTR [ebp+12]
        mov     eax, DWORD PTR [ebp-16]
        mov     DWORD PTR [eax+16], edx
        mov     eax, DWORD PTR [ebp-16]
        mov     WORD PTR [eax+20], 0
        mov     eax, DWORD PTR [ebp-16]
        mov     BYTE PTR [eax+23], 0
        mov     eax, DWORD PTR [ebp-16]
        lea     edx, [eax+8]
        mov     eax, DWORD PTR [ebp+8]
        sub     esp, 8
        push    edx
        push    eax
        call    Task::promise_type::get_return_object()
        add     esp, 12
        sub     esp, 12
        push    DWORD PTR [ebp-16]
        call    hello_coroutine(_Z15hello_coroutinei.Frame*) (.actor)
        add     esp, 16
        mov     eax, DWORD PTR [ebp+8]
        leave
        ret     4
.LC0:
        .string "hello "
.LC1:
        .string " coroutine "
hello_coroutine(_Z15hello_coroutinei.Frame*) (.actor):
        push    ebp
        mov     ebp, esp
        push    ebx
        sub     esp, 36
        mov     eax, DWORD PTR [ebp+8]
        movzx   eax, WORD PTR [eax+20]
        and     eax, 1
        test    ax, ax
        je      .L37
        mov     eax, DWORD PTR [ebp+8]
        movzx   eax, WORD PTR [eax+20]
        movzx   eax, ax
        cmp     eax, 7
        je      .L46
        cmp     eax, 7
        jg      .L47
        cmp     eax, 5
        je      .L45
        cmp     eax, 5
        jg      .L47
        cmp     eax, 1
        je      .L68
        cmp     eax, 3
        je      .L44
        jmp     .L47
.L37:
        mov     eax, DWORD PTR [ebp+8]
        movzx   eax, WORD PTR [eax+20]
        movzx   eax, ax
        cmp     eax, 6
        je      .L56
        cmp     eax, 6
        jg      .L47
        cmp     eax, 4
        je      .L55
        cmp     eax, 4
        jg      .L47
        test    eax, eax
        je      .L51
        cmp     eax, 2
        je      .L54
        jmp     .L47
.L51:
        mov     eax, DWORD PTR [ebp+8]
        add     eax, 12
        sub     esp, 8
        push    DWORD PTR [ebp+8]
        push    eax
        call    std::__n4861::coroutine_handle<Task::promise_type>::from_address(void*)
        add     esp, 12
        mov     eax, DWORD PTR [ebp+8]
        mov     BYTE PTR [eax+23], 0
        mov     eax, DWORD PTR [ebp+8]
        lea     edx, [eax+8]
        lea     eax, [ebp-25]
        sub     esp, 8
        push    edx
        push    eax
        call    Task::promise_type::initial_suspend()
        add     esp, 12
        mov     eax, DWORD PTR [ebp+8]
        mov     WORD PTR [eax+20], 2
        mov     eax, DWORD PTR [ebp+8]
        add     eax, 24
        sub     esp, 12
        push    eax
        call    std::__n4861::suspend_never::await_ready() const
        add     esp, 16
        xor     eax, 1
        test    al, al
        jne     .L53
        jmp     .L54
.L47:
        ud2
.L53:
        mov     eax, DWORD PTR [ebp+8]
        lea     ebx, [eax+24]
        mov     eax, DWORD PTR [ebp+8]
        lea     edx, [eax+12]
        lea     eax, [ebp-20]
        sub     esp, 8
        push    edx
        push    eax
        call    std::__n4861::coroutine_handle<Task::promise_type>::operator std::__n4861::coroutine_handle<void>() const
        add     esp, 12
        sub     esp, 8
        push    DWORD PTR [ebp-20]
        push    ebx
        call    std::__n4861::suspend_never::await_suspend(std::__n4861::coroutine_handle<void>) const
        add     esp, 16
        jmp     .L57
.L44:
        jmp     .L43
.L54:
        mov     eax, DWORD PTR [ebp+8]
        mov     BYTE PTR [eax+23], 1
        mov     eax, DWORD PTR [ebp+8]
        add     eax, 24
        sub     esp, 12
        push    eax
        call    std::__n4861::suspend_never::await_resume() const
        add     esp, 16
        sub     esp, 8
        push    OFFSET FLAT:.LC0
        push    OFFSET FLAT:_ZSt4cout
        call    std::basic_ostream<char, std::char_traits<char>>& std::operator<<<std::char_traits<char>>(std::basic_ostream<char, std::char_traits<char>>&, char const*)
        add     esp, 16
        mov     eax, DWORD PTR [ebp+8]
        mov     WORD PTR [eax+20], 4
        mov     eax, DWORD PTR [ebp+8]
        add     eax, 25
        sub     esp, 12
        push    eax
        call    std::__n4861::suspend_always::await_ready() const
        add     esp, 16
        xor     eax, 1
        test    al, al
        je      .L55
        mov     eax, DWORD PTR [ebp+8]
        lea     ebx, [eax+25]
        mov     eax, DWORD PTR [ebp+8]
        lea     edx, [eax+12]
        lea     eax, [ebp-16]
        sub     esp, 8
        push    edx
        push    eax
        call    std::__n4861::coroutine_handle<Task::promise_type>::operator std::__n4861::coroutine_handle<void>() const
        add     esp, 12
        sub     esp, 8
        push    DWORD PTR [ebp-16]
        push    ebx
        call    std::__n4861::suspend_always::await_suspend(std::__n4861::coroutine_handle<void>) const
        add     esp, 16
        jmp     .L57
.L45:
        jmp     .L43
.L55:
        mov     eax, DWORD PTR [ebp+8]
        add     eax, 25
        sub     esp, 12
        push    eax
        call    std::__n4861::suspend_always::await_resume() const
        add     esp, 16
        sub     esp, 8
        push    OFFSET FLAT:.LC1
        push    OFFSET FLAT:_ZSt4cout
        call    std::basic_ostream<char, std::char_traits<char>>& std::operator<<<std::char_traits<char>>(std::basic_ostream<char, std::char_traits<char>>&, char const*)
        add     esp, 16
        sub     esp, 8
        push    OFFSET FLAT:_ZSt3hexRSt8ios_base
        push    eax
        call    std::ostream::operator<<(std::ios_base& (*)(std::ios_base&))
        add     esp, 16
        mov     edx, DWORD PTR [ebp+8]
        mov     edx, DWORD PTR [edx+16]
        sub     esp, 8
        push    edx
        push    eax
        call    std::ostream::operator<<(int)
        add     esp, 16
        sub     esp, 8
        push    10
        push    eax
        call    std::basic_ostream<char, std::char_traits<char>>& std::operator<<<std::char_traits<char>>(std::basic_ostream<char, std::char_traits<char>>&, char)
        add     esp, 16
.L63:
        mov     eax, DWORD PTR [ebp+8]
        mov     DWORD PTR [eax], 0
        mov     eax, DWORD PTR [ebp+8]
        lea     edx, [eax+8]
        lea     eax, [ebp-25]
        sub     esp, 8
        push    edx
        push    eax
        call    Task::promise_type::final_suspend()
        add     esp, 12
        mov     eax, DWORD PTR [ebp+8]
        mov     WORD PTR [eax+20], 6
        mov     eax, DWORD PTR [ebp+8]
        add     eax, 26
        sub     esp, 12
        push    eax
        call    std::__n4861::suspend_never::await_ready() const
        add     esp, 16
        xor     eax, 1
        test    al, al
        je      .L56
        mov     eax, DWORD PTR [ebp+8]
        lea     ebx, [eax+26]
        mov     eax, DWORD PTR [ebp+8]
        lea     edx, [eax+12]
        lea     eax, [ebp-12]
        sub     esp, 8
        push    edx
        push    eax
        call    std::__n4861::coroutine_handle<Task::promise_type>::operator std::__n4861::coroutine_handle<void>() const
        add     esp, 12
        sub     esp, 8
        push    DWORD PTR [ebp-12]
        push    ebx
        call    std::__n4861::suspend_never::await_suspend(std::__n4861::coroutine_handle<void>) const
        add     esp, 16
        jmp     .L57
.L46:
        jmp     .L43
.L56:
        mov     eax, DWORD PTR [ebp+8]
        add     eax, 26
        sub     esp, 12
        push    eax
        call    std::__n4861::suspend_never::await_resume() const
        add     esp, 16
        jmp     .L43
.L68:
        nop
.L43:
        mov     eax, DWORD PTR [ebp+8]
        movzx   eax, BYTE PTR [eax+22]
        movzx   eax, al
        test    eax, eax
        je      .L69
        sub     esp, 8
        push    28
        push    DWORD PTR [ebp+8]
        call    operator delete(void*, unsigned int)
        add     esp, 16
        jmp     .L69
.L57:
        jmp     .L69
        sub     esp, 12
        push    eax
        call    __cxa_begin_catch
        add     esp, 16
        mov     eax, DWORD PTR [ebp+8]
        movzx   eax, BYTE PTR [eax+23]
        xor     eax, 1
        test    al, al
        je      .L62
        call    __cxa_rethrow
.L62:
        mov     eax, DWORD PTR [ebp+8]
        mov     DWORD PTR [eax], 0
        mov     eax, DWORD PTR [ebp+8]
        mov     WORD PTR [eax+20], 0
        mov     eax, DWORD PTR [ebp+8]
        add     eax, 8
        sub     esp, 12
        push    eax
        call    Task::promise_type::unhandled_exception()
        add     esp, 16
        call    __cxa_end_catch
        jmp     .L63
        mov     ebx, eax
        call    __cxa_end_catch
        mov     eax, ebx
        sub     esp, 12
        push    eax
        call    _Unwind_Resume
.L69:
        nop
        mov     ebx, DWORD PTR [ebp-4]
        leave
        ret
hello_coroutine(_Z15hello_coroutinei.Frame*) (.destroy):
        push    ebp
        mov     ebp, esp
        sub     esp, 8
        mov     eax, DWORD PTR [ebp+8]
        movzx   eax, WORD PTR [eax+20]
        or      eax, 1
        mov     edx, eax
        mov     eax, DWORD PTR [ebp+8]
        mov     WORD PTR [eax+20], dx
        sub     esp, 12
        push    DWORD PTR [ebp+8]
        call    hello_coroutine(_Z15hello_coroutinei.Frame*) (.actor)
        add     esp, 16
        nop
        leave
        ret
.LC2:
        .string "---------"
main:
        lea     ecx, [esp+4]
        and     esp, -16
        push    DWORD PTR [ecx-4]
        push    ebp
        mov     ebp, esp
        push    ecx
        sub     esp, 20
        mov     DWORD PTR [ebp-12], 63
        lea     eax, [ebp-16]
        sub     esp, 8
        push    DWORD PTR [ebp-12]
        push    eax
        call    hello_coroutine(int)
        add     esp, 12
        sub     esp, 8
        push    OFFSET FLAT:.LC2
        push    OFFSET FLAT:_ZSt4cout
        call    std::basic_ostream<char, std::char_traits<char>>& std::operator<<<std::char_traits<char>>(std::basic_ostream<char, std::char_traits<char>>&, char const*)
        add     esp, 16
        sub     esp, 12
        lea     eax, [ebp-16]
        push    eax
        call    Task::resume()
        add     esp, 16
        mov     eax, 0
        mov     ecx, DWORD PTR [ebp-4]
        leave
        lea     esp, [ecx-4]
        ret

c++20的协程比较抽象，他提供了定制点给程序员，让协程更加灵活，所以这也意味着我们如果要使用协程最好进行封装，让协程更好用，目前Github上已经有更多相关的的协程库：

GitHub - lewissbaker/cppcoro: A library of C++ coroutine abstractions for the coroutines TS
GitHub - alibaba/async_simple: Simple, light-weight and easy-to-use asynchronous components

实际上，switch语句的效果和状态机思想比较相像，我们是否可以用switch case来模拟无栈协程？

#include <iostream>

static int label = 0;

int get_next(){
  static int i = 0;
  switch(label) {
  case 0:{
    for(; i<100; ++i) {
      label = 1;
      return i;
      case 1:;
    }
  }
  default:
    break;
  }
}

int main() {

  for(int i = 0; i<10; ++i) {
    printf("No.%d, get_next() = %d\n", i, get_next());
  }
  return 0;
}

程序的运行结果是：

No.0, get_next() = 0
No.1, get_next() = 1
No.2, get_next() = 2
No.3, get_next() = 3
No.4, get_next() = 4
No.5, get_next() = 5
No.6, get_next() = 6
No.7, get_next() = 7
No.8, get_next() = 8
No.9, get_next() = 9

我们接着这个思路将switch语句包装一下，定义几个宏：

#define CO_BEGIN static int label = 0; switch(label) { case 0:
#define CO_YIELD(ret) do { label = __LINE__; return ret; case __LINE__:; } while(0)
#define CO_AWAIT do{ label = __LINE__; return ; case __LINE__:; } while(0)
#define CO_FINISH }

我们利用这几个宏将上面的程序改造一下，并添加一个func函数

#include <stdio.h>

#define CO_BEGIN static int label = 0; switch(label) { case 0:
#define CO_YIELD(ret) do { label = __LINE__; return ret; case __LINE__:; } while(0)
#define CO_AWAIT do{ label = __LINE__; return ; case __LINE__:; } while(0)
#define CO_FINISH }

int get_next() {
  static int i = 0;
  CO_BEGIN
    for(i = 0; i<10; ++i) {
      CO_YIELD(i);
    }
  CO_FINISH
}

void func() {
  CO_BEGIN
    printf("Before suspend in func\n");
    CO_AWAIT;
    printf("After resume to func\n");
    CO_AWAIT;
    printf("Complete\n");
  CO_FINISH
}

int main()
{
  for(int i  = 0; i<10; ++i) {
    printf("No.%d, get_next() = %d\n", i, get_next());
  }

  printf("-------------\n");
  func();
  printf("-------------\n");
  func();
  printf("-------------\n");
  func();
  return 0;
}

程序运行结果如下：

No.0, get_next() = 0
No.1, get_next() = 1
No.2, get_next() = 2
No.3, get_next() = 3
No.4, get_next() = 4
No.5, get_next() = 5
No.6, get_next() = 6
No.7, get_next() = 7
No.8, get_next() = 8
No.9, get_next() = 9
-------------
Before suspend in func
-------------
After resume to func
-------------
Complete

显然，这个程序只能帮助我们更好理解无栈协程的思路。

应用

惰性序列生成器
IO多路复用，搭配epoll，配合定时器hook系统调用，可以在阻塞时通过切换协程让出CPU资源，定时器超时后再切换回来，一个很直接的例子是sleep() 函数。
TODO

示例代码

#include <coroutine>
#include <iostream>
#include <functional>
#include <chrono>
#include <unistd.h>
#include <thread>

class IntReader {
public:
        bool await_ready() {
                return false;
        }

        void await_suspend(std::coroutine_handle<> handle) {
                std::thread thread([this, handle]() {
                                        sleep(3);
                                        value_ = 101;

                                        handle.resume();
                                });
                thread.detach();
        }

        int await_resume() {
                return value_;
        }

private:
        int value_{0};

};

struct Task {
        class promise_type {
        public:
                Task get_return_object() { return {};}
                std::suspend_never initial_suspend() { return {};}
                std::suspend_never final_suspend() noexcept { return {};}
                void unhandled_exception() {}
                void return_void() {}
        };
};

Task func() {
        IntReader reader1;
        int total = co_await reader1;
        std::cout << "after resume from reader1, current thread id: " << std::this_thread::get_id()<< '\n';
        IntReader reader2;
        total += co_await reader2;
        std::cout << "after resume from reader2, current thread id: " << std::this_thread::get_id()<< '\n';
        IntReader reader3;
        total += co_await reader3;
        std::cout << "after resume from reader3, current thread id: " << std::this_thread::get_id()<< '\n';
        std::cout << total << std::endl;
}

int main()
{
        func();

        for(int i = 0; i < 15; ++i) {
                std::cout <<"current thread id: " << std::this_thread::get_id() <<" this is " << i << " second.\n";
                sleep(1);
        }
        return 0;
}

#include <coroutine>
#include <iostream>
#include <functional>
#include <chrono>
#include <unistd.h>
#include <thread>

class IntReader {
public:
        bool await_ready() {
                return false;
        }

        void await_suspend(std::coroutine_handle<> handle) {
                std::thread thread([this, handle]() {
                                        static int seed = 0;
                                        value_ = ++ seed;

                                        handle.resume();
                                });
                thread.detach();
        }

        int await_resume() {
                return value_;
        }

private:
        int value_{0};

};

struct Task {
        class promise_type {
        public:
                Task get_return_object() {
                        return Task{ std::coroutine_handle<promise_type>::from_promise(*this) };
                }

                std::suspend_always yield_value(int val) {
                        value_ = val;
                        return {};
                }
                std::suspend_never initial_suspend() { return {};}
                std::suspend_never final_suspend() noexcept { return {};}
                void unhandled_exception() {}
                void return_void() {}

                int get_val() const {
                        return value_;
                }
        private:
                int value_{};
        };

public:
        Task(std::coroutine_handle<promise_type> handle) : coroutine_handle_(handle) {}
        int get_val() const {
                return coroutine_handle_.promise().get_val();
        }

        void Next() {
                coroutine_handle_.resume();
        }
private:
        std::coroutine_handle<promise_type> coroutine_handle_;
};

Task GetInt() {
        while(true) {
                IntReader reader;
                int value = co_await reader;
                co_yield value;
        }
}

Task func() {
        IntReader reader1;
        int total = co_await reader1;
        std::cout << "after resume from reader1, current thread id: " << std::this_thread::get_id()<< '\n';
        IntReader reader2;
        total += co_await reader2;
        std::cout << "after resume from reader2, current thread id: " << std::this_thread::get_id()<< '\n';
        IntReader reader3;
        total += co_await reader3;
        std::cout << "after resume from reader3, current thread id: " << std::this_thread::get_id()<< '\n';
        std::cout << total << std::endl;
}
int main()
{
        auto task = GetInt();
        std::string line;
        while(std::cin >> line) {
                std::cout << task.get_val() << std::endl;
                task.Next();
        }
        return 0;
}

参考

https://www.xinfinite.net/t/topic/3518
http://www.uml.org.cn/c%2B%2B/202503064.asp
https://zplutor.github.io/2022/03/25/cpp-coroutine-beginner/
https://en.wikipedia.org/wiki/X86_calling_conventions#Caller-saved_(volatile)_registers
https://www.bennyhuo.com/book/cpp-coroutines/02-generator.html#%E9%97%AE%E9%A2%98-1-%E6%97%A0%E6%B3%95%E7%A1%AE%E5%AE%9A%E6%98%AF%E5%90%A6%E5%AD%98%E5%9C%A8%E4%B8%8B%E4%B8%80%E4%B8%AA%E5%85%83%E7%B4%A0
https://zhuanlan.zhihu.com/p/497224333
https://lewissbaker.github.io/2017/09/25/coroutine-theory
https://mthli.xyz/stackful-stackless/
https://en.wikipedia.org/wiki/X86_calling_conventions#List_of_x86_calling_conventions
https://mthli.xyz/coroutines-in-c/
https://www.chiark.greenend.org.uk/~sgtatham/coroutines.html
https://www.xinfinite.net/t/topic/3518
https://lewissbaker.github.io/

Copyright： Copyright is owned by the author. For commercial reprints, please contact the author for authorization. For non-commercial reprints, please indicate the source.
